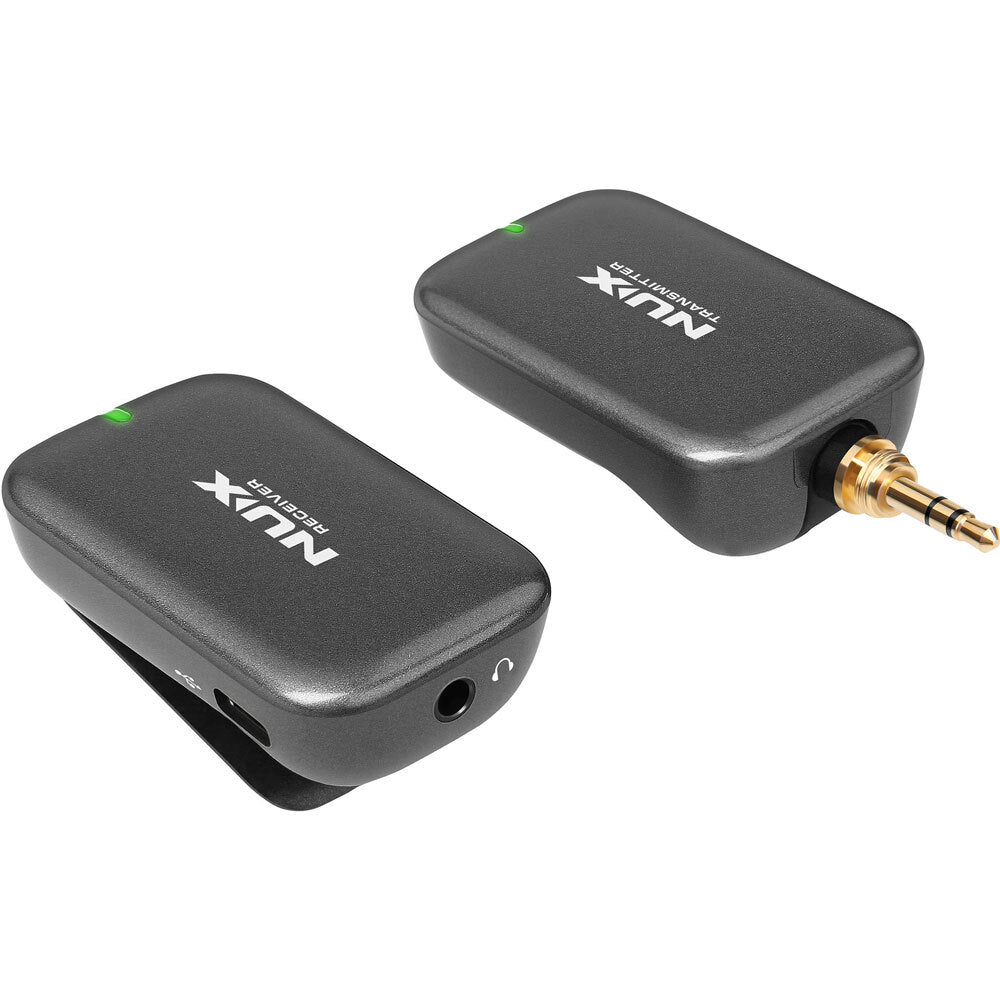

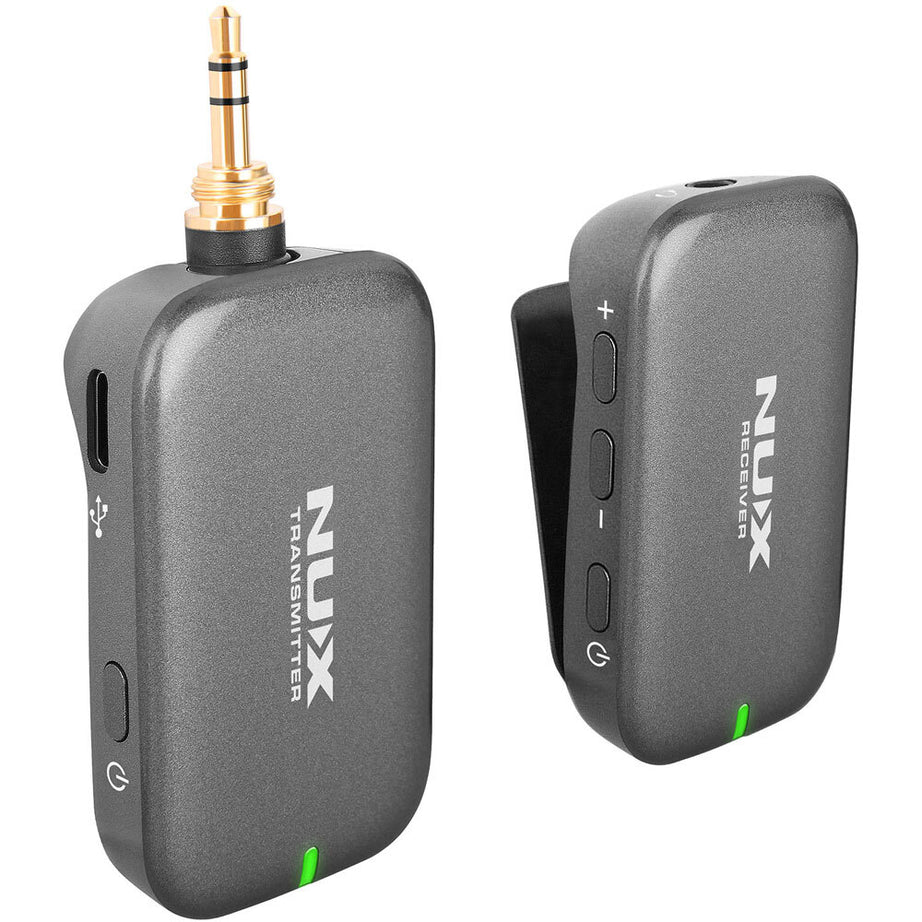

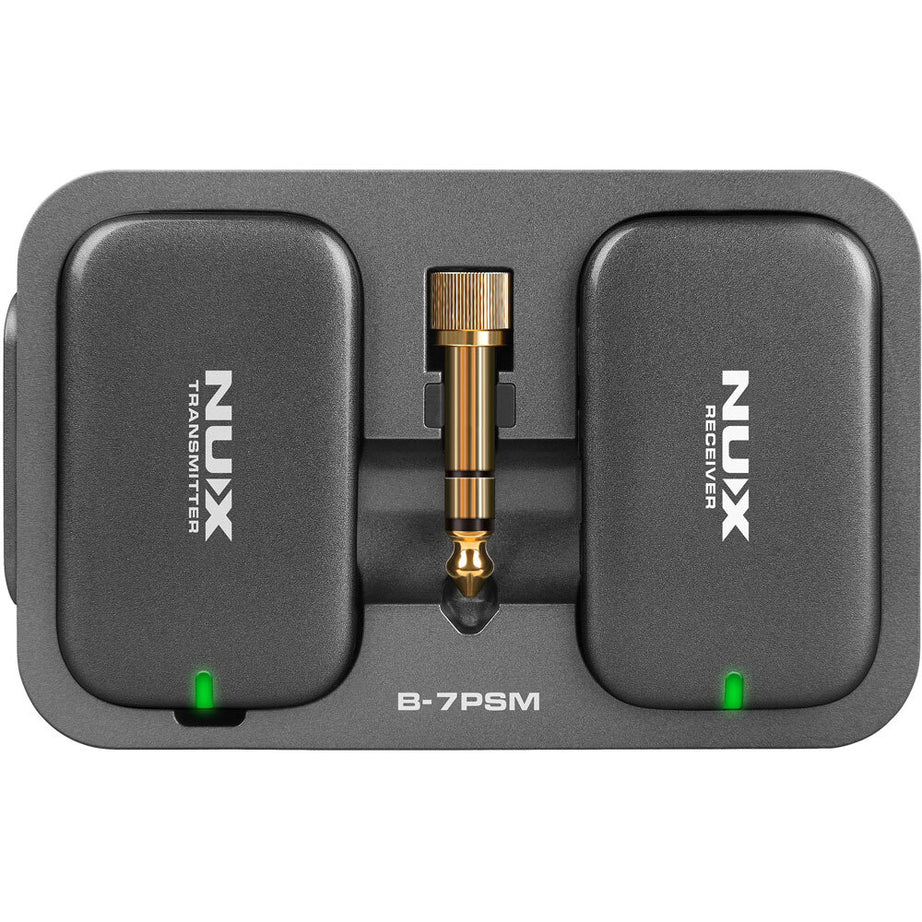

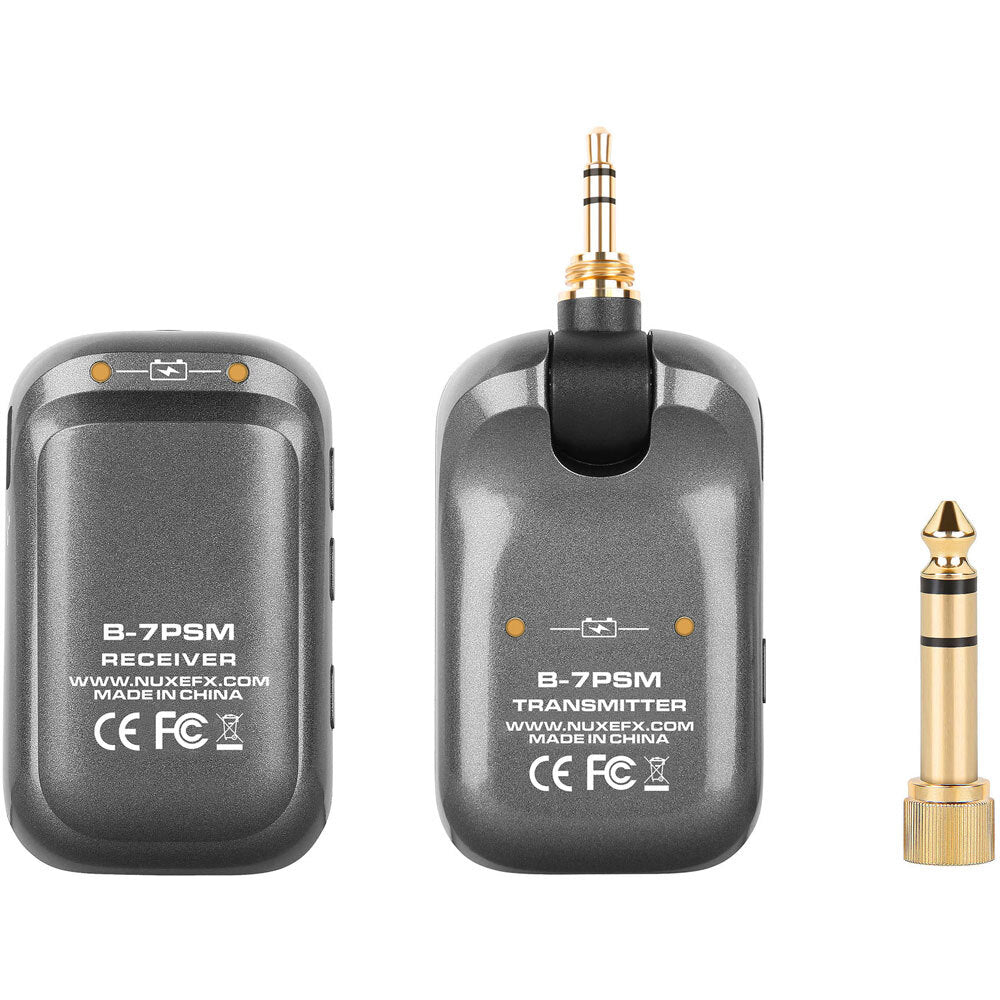

The NUX B-7PSM is a wireless personal in-ear monitor system with automatic RF environment scan, 5.8GHz interference-free broadcasting frequency, and 24-bit / 40 kHz high-quality STEREO audio transmitting. From any position. On any stage. Hear every note in detail with NUX B-7PSM in-ear monitoring system.
SPECIFICATIONS:
- Output Volume Adjustment: -64dB~0dB (0.5dB step)
- Operating Frequency Band: 5.8 GHz
- Operation Length: < 100 feet (30m) outdoor unobstructed, < 33 feet (10m) outdoor with obstructions
- Sampling Rate: 24bit / 40 kHz
- Frequency Response: 20~19kHz
- Latency: < 5.5ms
- Dynamic Range: 92 dB
- THD+ Noise: <0.6%@1kHz
- Built-in Battery Capacity (TX & RX): 450mAh / 3.7V
- Battery Running Time: > 4 hours
- Battery Charging Time: around 1.5 hours
- Power Consumption: TX <90mA?RX < 45mA
- TX Impedance: 3.5K
- Maximum Input Level: 7.6Vpp (8.6dBV or 2.7Vrms)
- RX Suggestion Phone Impedance: 16~32 ohms
- Maximum Output Power: 57mWrms (RLOAD =16 ohms, 1 kHz).
