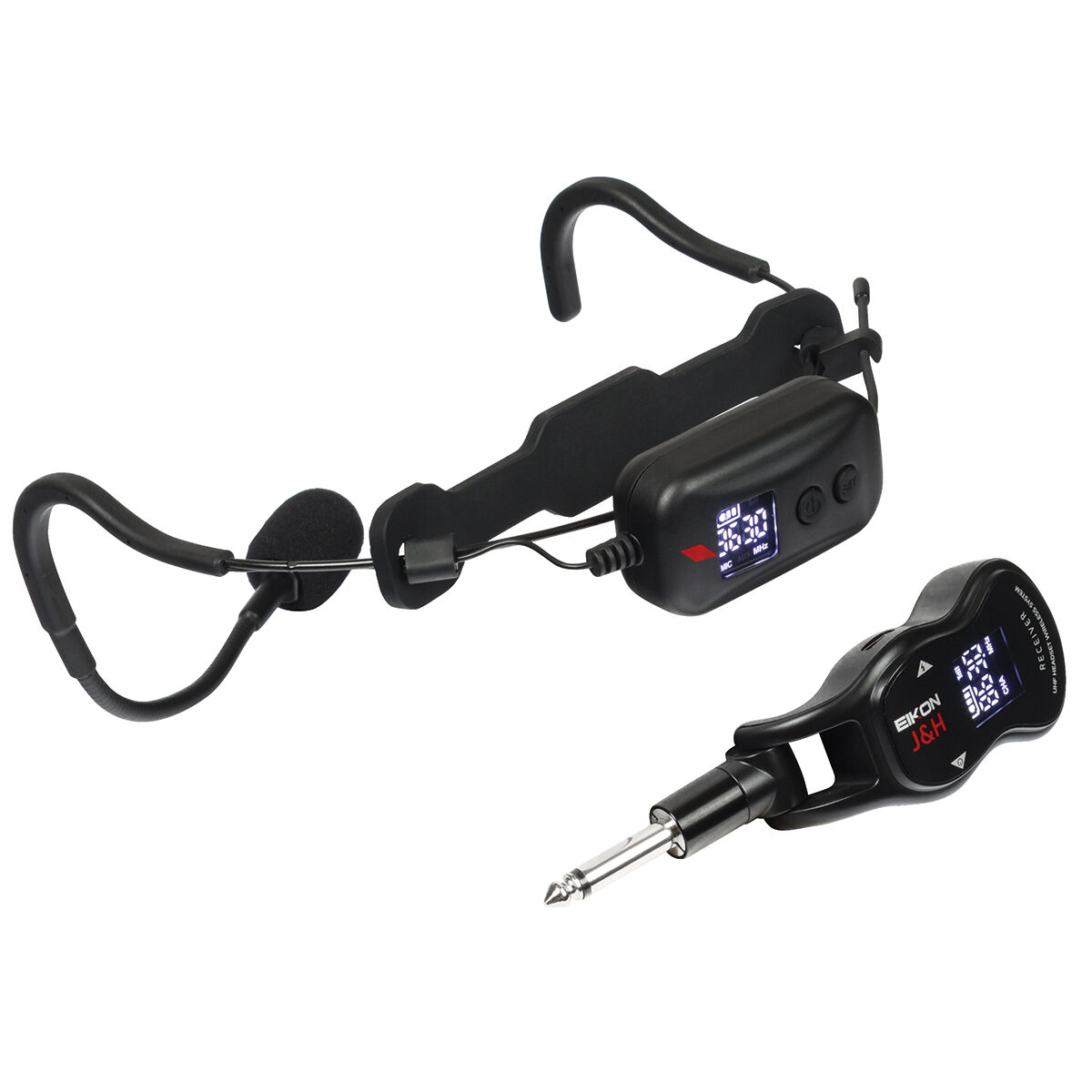

EIKON J&H Wireless Headset system
The EKJ&H is a quartz-controlled UHF headset wireless microphone system that provides reliable, high-quality signal transmission.
The EKJ&H comes with 3 units: the EKJ&H headset transmitter, the EKJ&H compact "connector-style" receiver, and a USB to USB-C charging cable.
50 frequency channels are available in 512 - 541 MHz, allowing the system to be used with other wireless equipment simultaneously.
- UHF 512 - 541 MHz frequency band
- Quartz locked modulation mode
- Up to 20 meters range
- Built in 3.7V/500mA lithium battery
- 5V USB-C charging cable included
- Up to 4 hours autonomy
- Up to 6 systems usable in the same location
Download Manual HERE
TECHNICAL SPECIFICATIONS
EKJ&H – UHF PLL Headset Transmitter
|
RF Channels
|
50 frequency presets
|
|
RF Frequency Band
|
UHF: 512 - 541 MHz
|
|
RF Frequency Stability
|
±0,002%
|
|
RF Oscillation Mode
|
Quartz locked
|
|
RF Modulation Type
|
Wideband FM Stereo
|
|
RF Output Power
|
10mW
|
|
Sub-harmonic
|
< 40 dB
|
|
Operating current
|
130 mA
|
|
Operating Time
|
3 to 5 hrs (depending on use conditions)
|
|
Operating Power Supply
|
3.7 V / 500 mA - built-in Lithium battery
|
|
Charging mode
|
USB charging 5V – type USB-C connector
|
|
Charging time
|
4 hours
|
|
Weight
|
0.50 Kg
|
